Classic Thunder Build - Duracel79 - England

Post by Duracel79 »

Hi all

This is the start of my new Classic Thunder Race Car build.

It is basically a re-shell of the old yellow car which should now be called the "Test Mule" see thread below:
viewtopic.php?f=55&t=5116

Although it will be built with all the knowledge gained from the "test mule". so there will be improvements.

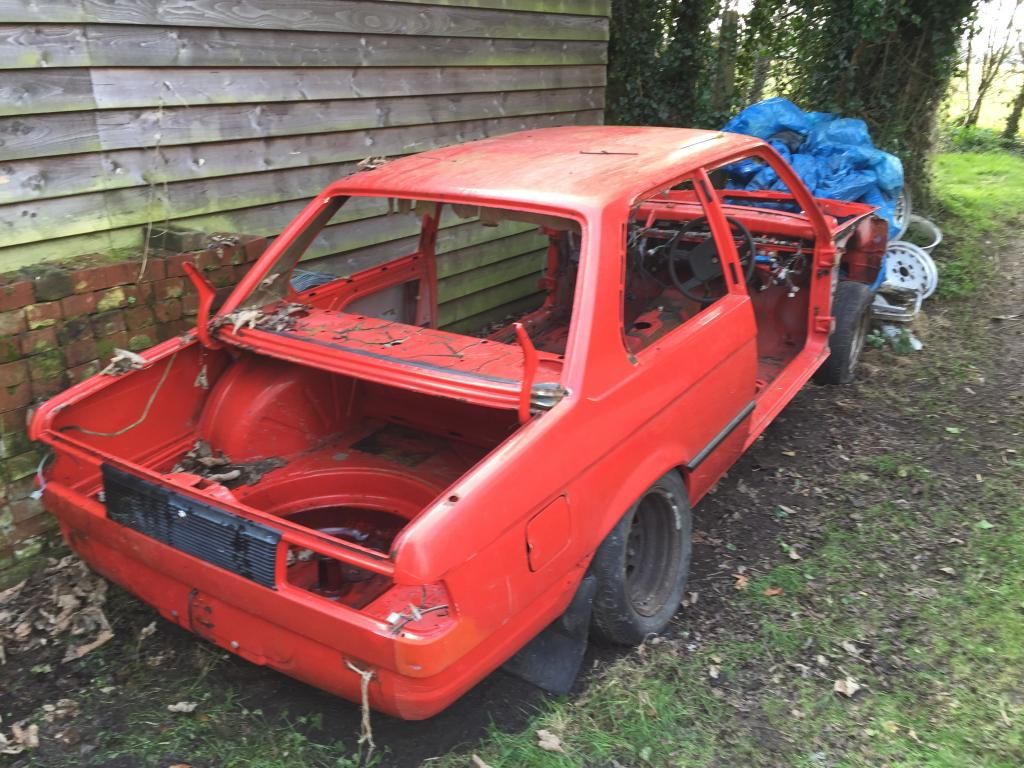

So here she is at the start, fairly bare 1983 316 shell with some dodgy suspension and wheels reverse mounted :screwy

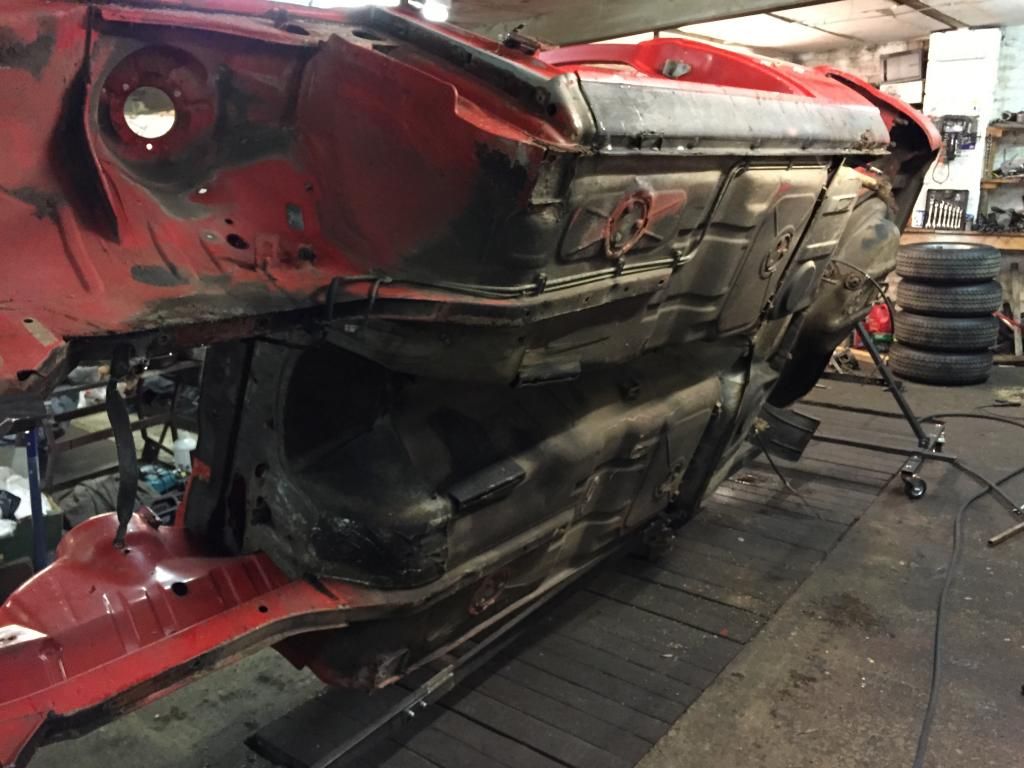

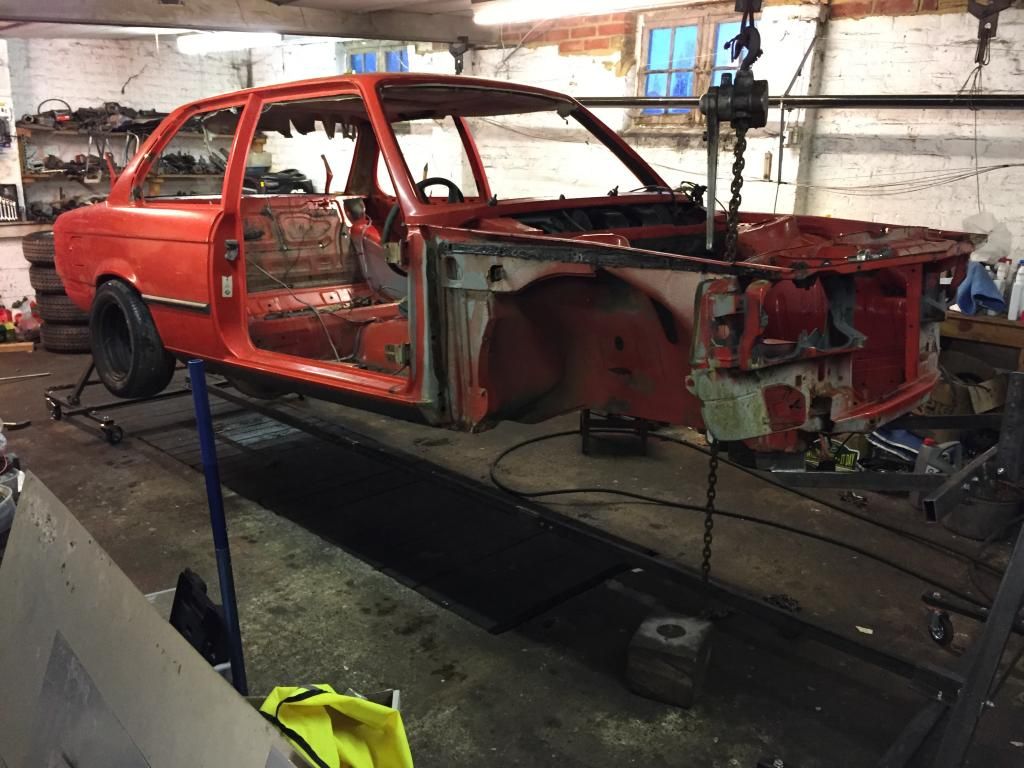

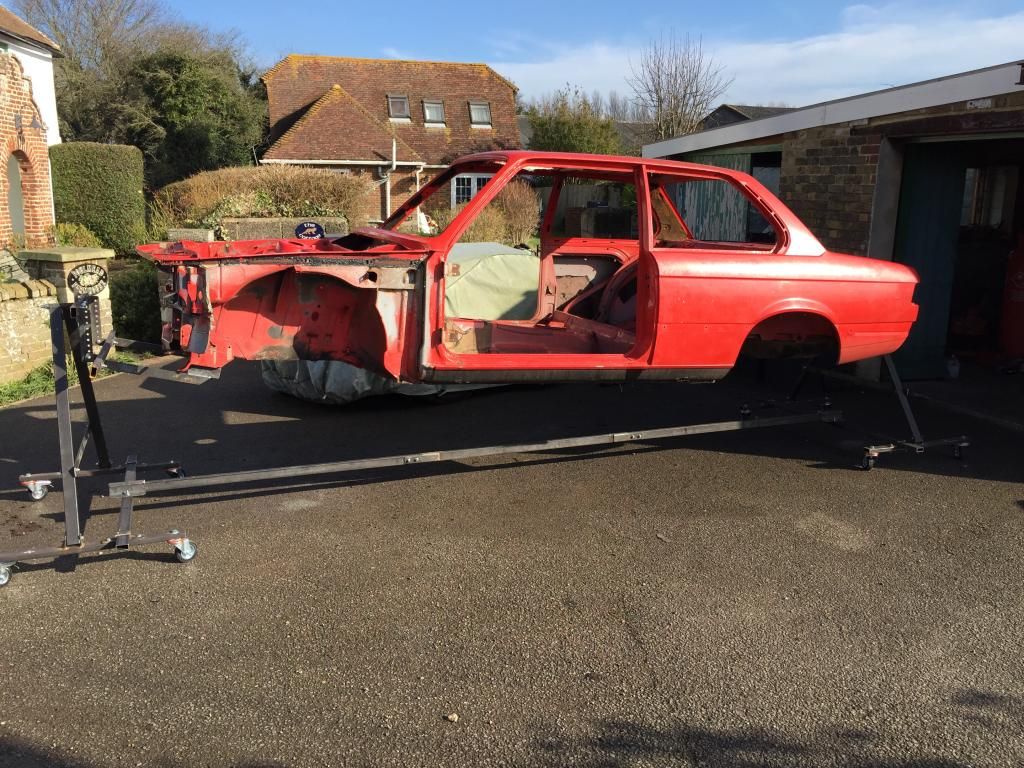

First job was to strip the shell completely whilst mounted on a "Rollover jig/spit"

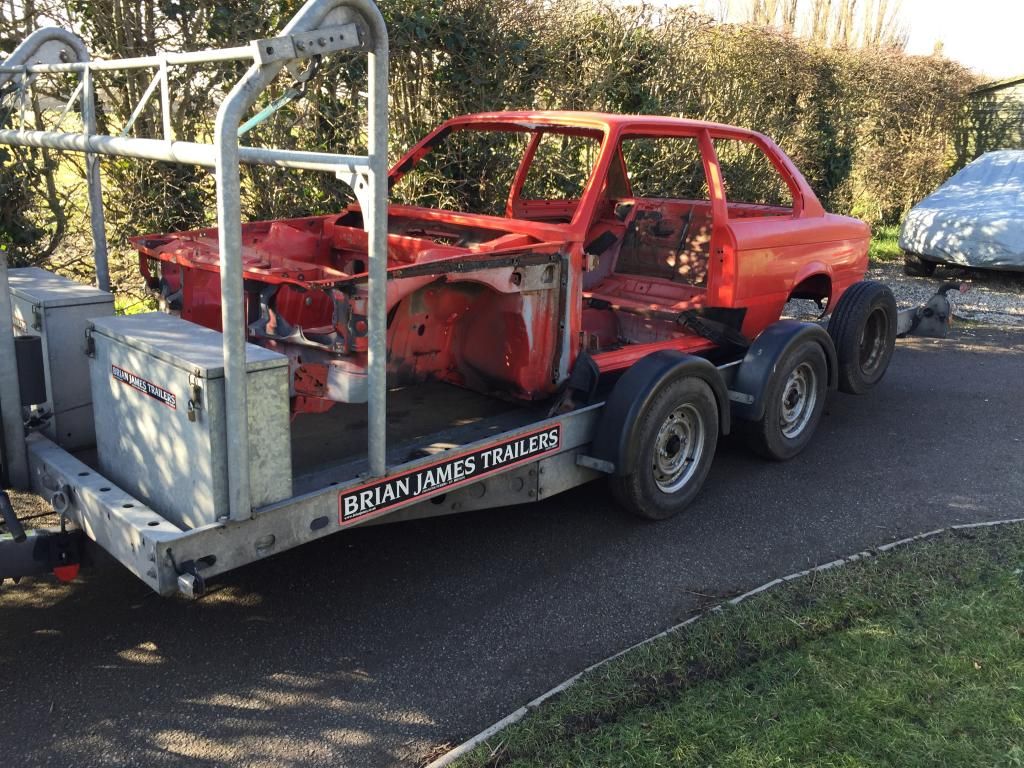

Then all loaded up on the trailer to transport to SPL for acid dipping. A nice 500 mile trip today to drop it off.
I'll post progress when new parts start arriving and I pick the clean shell back up in March (hopefully there will be some metal left :bag )

SPL (Surface Processing Ltd):
http://www.surfaceprocessing.co.uk/for-cars.html

Regards

Ben
Last edited by Duracel79 on Tue May 01, 2018 7:27 pm, edited 1 time in total.


1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
uwbuurman
E21 VIP
E21 VIP
Posts: 15827
Joined: Fri Jun 12, 2009 4:49 pm
My E21(s): 1978 type 1 323i 5speed dogleg Polaris
Location: Ljouwert

Re: Classic Thunder Build - Duracel79 - England

Post by uwbuurman »

Nice, can't wait for more! You won't be picking up my roof anymore next sharknosemeeting then.
Last edited by uwbuurman on Mon Feb 16, 2015 10:35 pm, edited 1 time in total.
It's the man next door!

1978 BMW 323i
1980 BMW 528i
1987 BMW 325iA cabriolet
2006 BMW 320d touring High Executive
2015 BMW 320dA touring xDrive High Executive ///Msport

Mucka
Upcoming E21 fanatic
Posts: 89
Joined: Fri Jul 18, 2014 11:54 pm
My E21(s): 320

Re: Classic Thunder Build - Duracel79 - England

Post by Mucka »

Looking forward to the acid dip photos, think it will be that rusty?

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 778
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Re: Classic Thunder Build - Duracel79 - England

Post by Duracel79 »

Hopefully not too bad :innocent

The usual areas have signs of rust, around front and rear jacking points and fuel filler neck in the rear inner arch.
Everything else looks pretty good, but the dip will reveal all :takepicture
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
Jeroen
Site Admin
Posts: 26335
Joined: Tue Sep 14, 2004 12:23 pm
My E21(s): '81 323i Baur
Location: The Netherlands
Contact:

Re: Classic Thunder Build - Duracel79 - England

Post by Jeroen »

Nice! Well, eh, 500 miles to the nearest acid dipper? :shock:
Regards/groeten, Jeroen

We want your contributions in our E21 Facebook Group! Join, like, post & share!

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 778
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Re: Classic Thunder Build - Duracel79 - England

Post by Duracel79 »

Not the nearest but the most experienced. That did include pick up and drop off of my dad's trailer which adds ### miles.

Did have a peak at a csl race car shell being dipped with a cage :shake I wish, maybe in ten years or after a Lotto win lol.

Ben
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
Jeroen
Site Admin
Posts: 26335
Joined: Tue Sep 14, 2004 12:23 pm
My E21(s): '81 323i Baur
Location: The Netherlands
Contact:

Re: Classic Thunder Build - Duracel79 - England

Post by Jeroen »

I get it!
Regards/groeten, Jeroen

We want your contributions in our E21 Facebook Group! Join, like, post & share!

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 778
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Re: Classic Thunder Build - Duracel79 - England

Post by Duracel79 »

uwbuurman wrote:Nice, can't wait for more! You won't be picking up my roof anymore next sharknosemeeting then.
Hi mate, missed the comment with the edit. Yes won't be needing the roof.
It just seemed a bit far for transportation costs and the timing wasn't quite right.
I needed to get the project started so will be attempting to weld in the sunroof panel without distorting the roof too much.
This needs to be done before it goes to have the cage fitted in early April.

Ben
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
croma_man
E21 Pro
Posts: 594
Joined: Fri Sep 07, 2012 1:18 pm
My E21(s): '83 EU 327i
Location: Slovenia (EU)
Contact:

Re: Classic Thunder Build - Duracel79 - England

Post by croma_man »

subscribed ! Hoping for a lot interesting technical pictures of the improvement you are going to make :whistle

E21noob
E21 Fanatic
Posts: 355
Joined: Sat Jul 05, 2014 11:46 pm
My E21(s): SOLD
Location: Oslo, Norway

Re: Classic Thunder Build - Duracel79 - England

Post by E21noob »

I can't remember who, and I might be mistaken, but someone on here chose not to acid dip due to that some body panels in the rear arches are not welded together but just glued.. did you consider this?

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 778
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Re: Classic Thunder Build - Duracel79 - England

Post by Duracel79 »

I'm pretty sure all the panels are either spot welded or welded proper.
Looks like the only glue used is seam sealer over the joints.

They have done 2002's, E9's, E30's and they all strip fine so fingers crossed.

Ben
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

E21noob
E21 Fanatic
Posts: 355
Joined: Sat Jul 05, 2014 11:46 pm
My E21(s): SOLD
Location: Oslo, Norway

Re: Classic Thunder Build - Duracel79 - England

Post by E21noob »

I'm sure it will be. I did find the post though. It was uwbuurman that mentioned it:

viewtopic.php?f=54&t=22124&p=240264&hilit=acid#p240264

I am considering the same approach as you at some point so I will be interested to hear how it goes.

E21noob
E21 Fanatic
Posts: 355
Joined: Sat Jul 05, 2014 11:46 pm
My E21(s): SOLD
Location: Oslo, Norway

Re: Classic Thunder Build - Duracel79 - England

Post by E21noob »

I do like the reversed wheels btw :loll :loll

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 778
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Re: Classic Thunder Build - Duracel79 - England

Post by Duracel79 »

E21noob wrote:I do like the reversed wheels btw :loll :loll
Its very strange but the shell turned up like that.
It had what look like 2002 rear arms with wheel studs rather than bolts. I guess the offset meant the wheels wouldn't go on the other way round.
One was an E21 wheel and the other was a space saver both on reversed :screwy
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
Jeroen
Site Admin
Posts: 26335
Joined: Tue Sep 14, 2004 12:23 pm
My E21(s): '81 323i Baur
Location: The Netherlands
Contact:

Re: Classic Thunder Build - Duracel79 - England

Post by Jeroen »

LOL, saw a similar issue at the 2013 Spa Classic event. Classic 911 had a bent rear beam so they replaced it complete with the training arms, early morning on race day. All looked fine until they fit the wheels... track with was way wider, speaking of inches! Too late to change so they raced it, without much success btw and it looked silly too. I'll try to dig up a photo!
