S54 Powered 323i - Duracel79 - England

Post by Duracel79 »

Newbie here,

Been watching the site for a while, just never registered or posted.

Bought my car part converted to a race car about 1.5 years ago. Finally got it all finished this year for my first race with it in April.

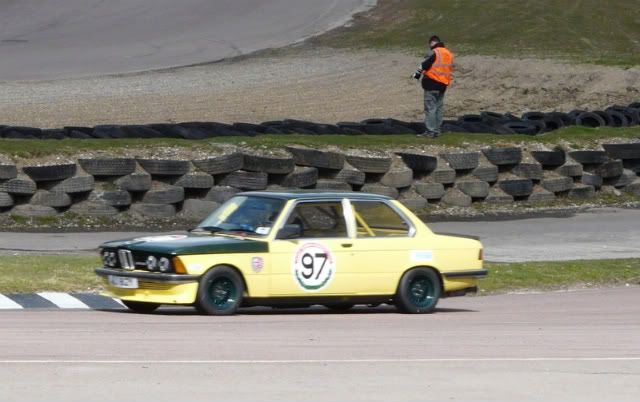

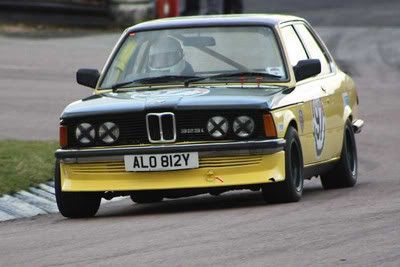

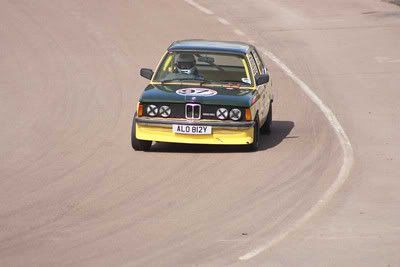

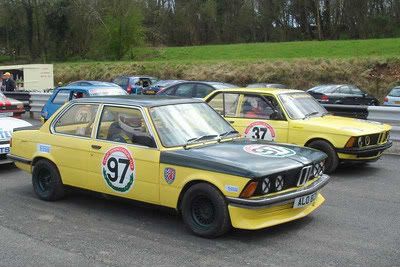

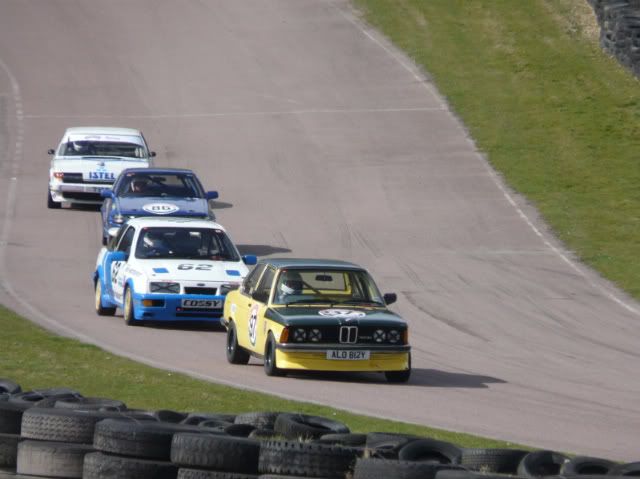

Here are a few pics.

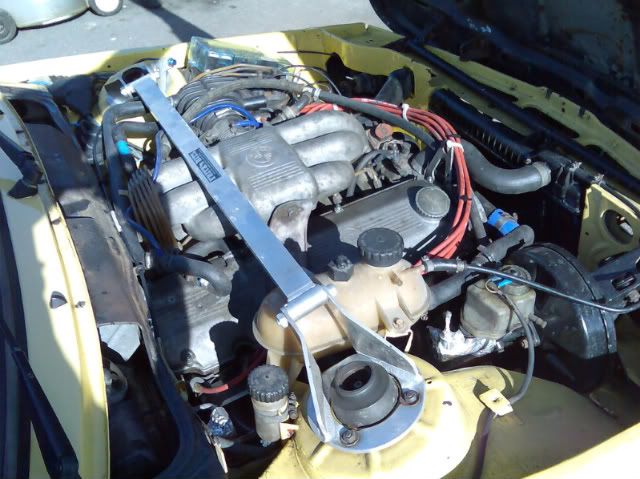

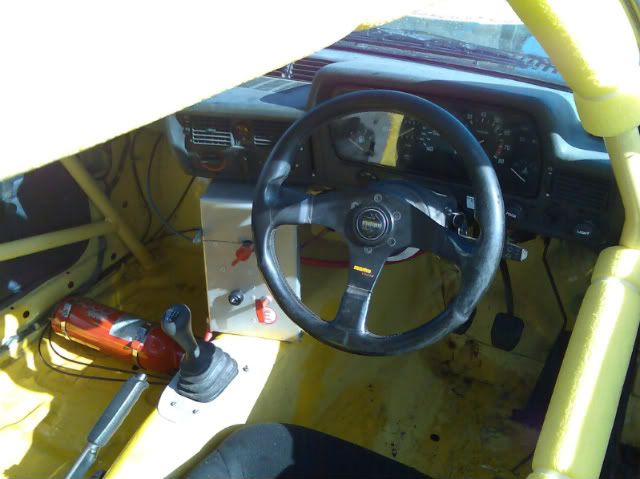

Its gto a 2.3 M20 engine running on K-Jet. Fritz manifold, Homemade Stainless System, Heavily ported 731 head with 300 deg cam, E30 gearbox. all lightened and balanced. Leda coilovers, Quick rack, Full cage, Extinguisher system, braided brake lines, race brake fluid, yellowstuff pads, Dunlop D83J Tyres on Compomotive wheels.

[/img]
Last edited by Duracel79 on Wed May 02, 2018 1:53 pm, edited 5 times in total.


1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
ac/dennis
E21 VIP
E21 VIP
Posts: 1439
Joined: Sat Mar 26, 2005 2:03 pm
Location: Holland, Deventer
Contact:

Post by ac/dennis »

Must be much fun to drive or race!

Love those action pics.

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 779
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Post by Duracel79 »

Yeah, it does handle well, just lacks a bit of power over my E30 2.7. I have registered it on the road as well, now that is amusing!!
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
Danny043
E21 Pro
Posts: 758
Joined: Tue May 15, 2007 4:16 pm
Location: Delft, The Netherlands

Post by Danny043 »

Looking good 8)
How did you sort the speedo out with the E30 gearbox?

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 779
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Post by Duracel79 »

No speedo mate, Just use satnav on the road.

I am looking to change to a 323i box its just I had the E30 one spare to use at short notice.

After my first race with it, I've got a few minor improvements to do now.

Just trying to resist slotting my high compression 2.7 in there to make it really fly ( It puts me outside the regulations for my championship!).
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
Jason_323i
E21 Pro
Posts: 756
Joined: Sun Jan 23, 2005 3:43 pm
Facebook page: https://www.facebook.com/#!/e21jason
Location: Dubai UAE

Post by Jason_323i »

Hi

I was going to build a car for the classic group 1 (nearly bough the other yellow e21 also) and have a few ideas depending on your budget you could improve

Ditch the servo save weight and run a pedal box.
Run a motosport front spoiler and save weight
Bigger throttle body, fuel distributor other k-jet mods, custom inlet manifold (log type) or just a bigger 325i manfold
Later m20 rad setup better cooling, tropical spec water pump, m21 oil pump, crank scrapper, big sump.

The period 323 group2 cars made about 260bhp so there is more power there with out stroking the engine after market rods 7 pistons are about 1k.

Run a set of adjustable top mounts on the struts.

What brake set up are you running?

Drop me a line if you have any questions
BMW e21 race car supercharged s14 cage and fabrication by www.chizfab.com
Z3M Coupe
2.8 Z3 Coupe
Caterham Supersport
Clio 172 Cup factory race car(50%)
Ferrari 348 Challenge track car

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 779
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Post by Duracel79 »

Hi Jason,

Got a few of those in the pipeline. E30 325 manifold with big bore throttle to go on. Just need time to sort out the injector mounts. Already fitted an E30 water pump, new recored radiator with electric fan.

As for the Suspension, I was really happy with it for the race, the car was very stable and progressive even when we had a shower during the Group 1 race. I ran at about -2.5 degrees camber all round and a bit of toe out at the front. The car has modified TCA's for the front and Camshell slotted inner wishbone mounts at the rear.

At Lydden the biggest problem I had was the wrong gearing/rev range for pulling up the hill. I needed either more low down torque, lower gearing (may compromise elswhere aroung the circuit?) or increasing the rev range (was capped at about 6955, most i could get the original limiter set to before the races, also with a fairly fresh engine but soon 8k should be possible).

As for the larger metering unit, I Had thought of that, I just havn't researched what models came with appropriate units. Some thing like a Porsche 944 2.5 I suppose.

Before I do any more mods though, I'm going to get it run up on a rolling road to see where i'm starting from.

Thanks for the comments, Keep them coming.
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

User avatar
340i
E21 Fanatic
Posts: 371
Joined: Tue Dec 27, 2005 4:11 am

Post by 340i »

Duracel79 wrote: The car has modified TCA's for the front and Camshell slotted inner wishbone mounts at the rear.
this sounds interesting, can u please elaborate and/or post photos.
cheers. :D

nice car by the way, i like the oldskool colour scheme. very unique

User avatar
Jason_323i
E21 Pro
Posts: 756
Joined: Sun Jan 23, 2005 3:43 pm
Facebook page: https://www.facebook.com/#!/e21jason
Location: Dubai UAE

Post by Jason_323i »

Hi
The Porsche 911 turbo/928 and merc V8’s all use larger metering units also you also want to pick up the throttle body and bellows. With the V8 units you can blank of the extra outlets and on all of them you can shim the pressure regulator to adjust it.
Also under the regs as you already run electronic ignition which picks up engine speed and manifold pressure I reckon you could mega jolt from a crank trigger and map sensor then you will be able to create a custom curve.
Also do you have an idea of spring rates and are you running a rear anti roll bar, a lot of US races take them off but I think that is because their tracks are smoother and they run higher spring rates.
I have zender over bumper body kit for sale you could ditch the front bumper & valance and rear bumper saving about 10kg’s plus a set of merc hi flow k-jet injectors.
Also did you get your quick rack from me.
Jason
BMW e21 race car supercharged s14 cage and fabrication by www.chizfab.com
Z3M Coupe
2.8 Z3 Coupe
Caterham Supersport
Clio 172 Cup factory race car(50%)
Ferrari 348 Challenge track car

jagclarke
Newbee
Posts: 10
Joined: Sun Jan 13, 2008 6:48 pm

Post by jagclarke »

i didnt think u could get yellow stuff pads for e21 they standard calipers? how u find the pads?

drjim
E21 VIP
E21 VIP
Posts: 1084
Joined: Fri Nov 03, 2006 11:32 pm
Location: Manchester Uk

Post by drjim »

My DS2500's are the same as for the MK1 Lotus Elise as i recall, so that's undoubtedly why there are yellowstuff available. You just need to know which car had the same shape pads.
1983 316 Pustergrun - track sluG!
1982 Saphirblau Baur 325i

Cars all gone!

jagclarke
Newbee
Posts: 10
Joined: Sun Jan 13, 2008 6:48 pm

Post by jagclarke »

yeah i think pads are same as esprit and cavaler from what i rember.

i think these are prob the ones http://www.ebcbrakesdirect.com/car/imag ... ge=DP3197C

User avatar
Duracel79
E21 VIP
E21 VIP
Posts: 779
Joined: Thu May 29, 2008 6:54 pm
Location: Stevenage, Hertfordshire

Post by Duracel79 »

340i
I should be able to get some pics from under the car this weekend.
I'll post them next week.

Jason
No idea where the rack came from, most of the major bits were already on the car when I bought it. The rack still utilises a damper so looks stock but is only 2.5 turns lock to lock.
As for spring rates I seem to remember them being 425lb front and 400lbs rear, so not too hard. I'm running both standard front/rear roll bars and standard bushes all round.
Didn't realise there were different size injectors for K-jet, but i was under the impression the 323i ones can fuel about 50bhp each (300 total.) I know that all depends if you can get the air in to burn it. Was it Alpina or Schnitzer that did the turbo'd 323i with K-jet and about 300bhp?

For ignition i've still got a Dizzy at the moment and the regs say you can't alter the original sparks ie change to ECU controlled.

Jagclarke
Brakes are standard, apart from being aluminium Alfa SZ Brembo calipers up front and W&N drilled discs. I sourced the pads through Fritz Bitz along with both Of my Strut braces and the exhaust manifold.
Rear pads are standard, as they don't do very much anyway.
They yellowstuff pads do need warming up but the really bite once hot.
From your username thought you might like this pic of me at brands in my dads race car.
:twisted: Image
Last edited by Duracel79 on Wed May 02, 2018 1:54 pm, edited 1 time in total.
1982 323i (S54 "Test Mule" - to be rebuilt into M20 powered track car)
1983 316 (Taiga Thunder - The refined S54 Race car)
2004 330d Touring (The Daily Hack / Tow Car / Load lugger)

jagclarke
Newbee
Posts: 10
Joined: Sun Jan 13, 2008 6:48 pm

Post by jagclarke »

its my intitals but yeah dont mind jag's have an old daimler. buts its one pre jaguar take over. db18 model its in need of restoration tho.

User avatar
JTY
Upcoming E21 fanatic
Posts: 91
Joined: Wed Jun 22, 2005 11:23 am
My E21(s): 1981 323i
Location: Belgium
Contact:

diff

Post by JTY »

Hi there Duracel79

What kind of diff are you running? How much lock does it have?

Cheers

Jeroen T.
