Wiring connector identification help required

Post by problemchild75 »

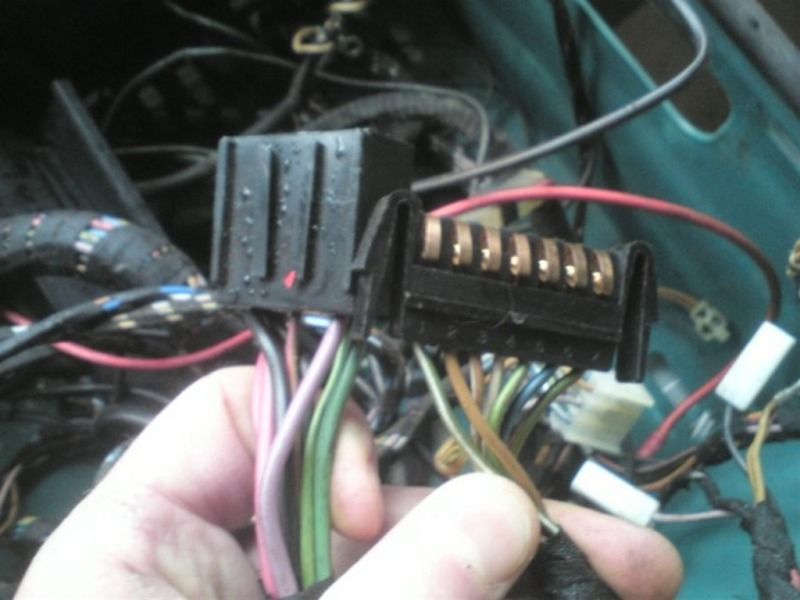

The two plugs below are from a 316 interior loom and I want to know where they go without pulling my interior to bits at mo. where do they connect to please?


User avatar
mr edd
E21 Fanatic
Posts: 248
Joined: Thu May 31, 2007 12:32 am
Location: wigan! england

Re: Wiring connector identification help required

Post by mr edd »

the one on the right in the picture go's in the right side of the instruments/clocks (temp side gauge side )and the other on the left looks like it is for the ignition switch which connects just under the dash to the right hand side of the sterring column(there is a bracket on the dash support/crossmember for the plug to clip onto)...
e21 320 (12/1975) 320i/4 (3/77)running gear.
e21 316 (1981) TRE702X.
problemchild75
E21 Fanatic
Posts: 377
Joined: Fri Jan 27, 2012 2:47 pm
Location: manchester
Contact:

Re: Wiring connector identification help required

Post by problemchild75 »

Thank you :thumbsup
